Bonded orthodontic retainers have gained in popularity during recent years to maintain tooth positions upon completion of active tooth movement. This article aims to give an overview of the use of bonded retainers, discuss the different techniques for placement and review the different types of bonded retainers that are available.
Clinical Relevance: This article reviews a number of methods and materials used to construct bonded retainers and also provides evidence of failure rates.
Article
The aim of orthodontic retention is to maintain teeth in their new positions after active treatment has ceased. Almost all treated malocclusions require some form of retention post-treatment and relapse of orthodontic treatment may be unpredictable.1 Histological studies in dogs have shown that supracrestal fibres can take at least seven months to adapt to their new positions.2,3 Hence, the most common period of retention within the UK is 12 months,4 however, teeth can still move from their corrected positions after this period due to continued skeletal growth and soft tissue maturation. Therefore, some clinicians advocate indefinite retention to minimize relapse.1,5
A wide number of appliances have been used as retainers and these can be divided into two main subgroups:
Removable retainers (eg Hawley, Begg and Vacuum-formed retainers);
There is a variety of retention regimes used by orthodontists and currently there is insufficient evidence on which to base the clinical practice of orthodontic retention.1 The pre-treatment records and tooth movements during treatment should be considered prior to prescribing the appropriate retention regime (Table 1).6
Orthodontic space closure
Closed median diastema
Spaced anterior teeth
Post orthodontic tooth migration in adults
Space closure following mandibular incisor extraction
Severe rotations
Impacted canines
Severely displaced teeth
Loss of periodontal support
Severe pre-treatment lower incisor crowding
Planned alteration in the lower inter-canine width
Advancement of lower incisors during active treatment
This article will review the use of bonded retainers in maintaining tooth position.
Kneirim 1973 published the first paper describing the use of fixed bonded retainers and described the use of a retainer made from 0.028” stainless steel bonded to the lower cuspids only.7
Advantages and disadvantages of bonded retainers
The advantages of bonded retainers are:
Aesthetics;
Reduced patient co-operation for wear;
Provision of safe and predictable long-term/permanent retention compared with removable retainers.8
The disadvantages of bonded retainers include:
A potential compromise in oral hygiene. They prevent flossing and may potentially lead to gingival inflammation if placed close to the gingival margins;
Risk of bond failure or fracture and therefore the necessity for maintenance;
Risk of tooth movement if active;
Interference with the occlusion.
Design
The main contemporary designs are retainers which are:
Bonded to all teeth in the labial segment;
Bonded only to canine teeth.

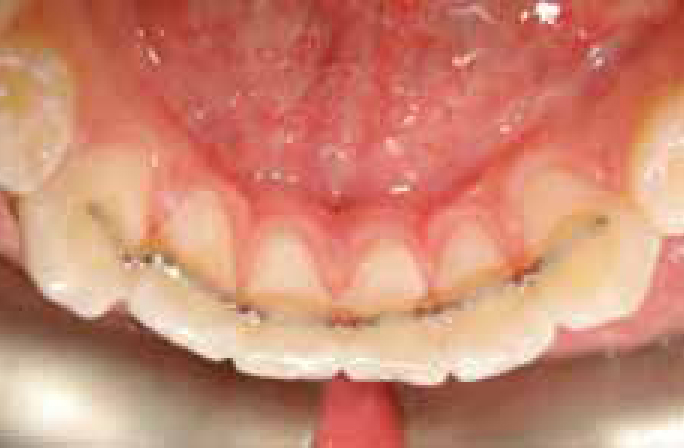

Bonded to all teeth in the labial segment
This design of retainer bonds the orthodontic wire to the lingual aspect of each individual tooth in the labial segment. The wire utilized usually has some flexibility so that teeth are not held rigidly in position, which allows physiological movement of the teeth even when several adjacent teeth are bonded; this may result in reduced bond failure since teeth can move independently of each other.6,8 The wire used is usually multistranded (3–6 strands)6,8 stainless steel varying in diameter from 0.0175” to 0.0215”. The thicker the wire or the more strands there are, the less chance of wire fracture; however, the wire becomes less flexible. Five- and six-strand stainless steel wire has been recommended owing to its adaptability and ability to retain adhesive material, eg composites.6,9 This design is indicated when individual tooth movements are prone to relapse.

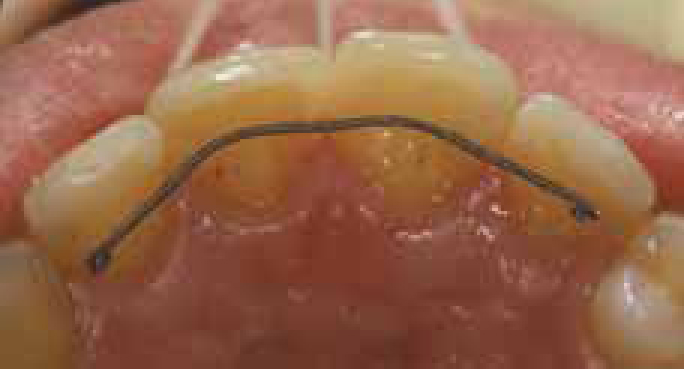

Bonded only to canine teeth
This design of bonded retainer attaches a stiff orthodontic wire between the canine teeth and is not bonded to the incisors. Multistrand stainless steel wire or, more usually, plain stainless steel wire, 0.032”, may be used.6,10 This design is indicated when there is alteration of the antero-posterior or lateral position of the lower labial segment during treatment and maintenance of the post-treatment intercanine width is essential.
It has been suggested that this type of bonded retainer is easier to place, safer and more hygienic than retainers bonded to all six anterior teeth. In addition, if the retainer debonds from one of the canines, the patient is immediately aware and can seek assistance, therefore preventing any unnecessary relapse.6 However, there is some evidence to suggest that these retainers may be less effective at maintaining incisor alignment, particularly rotations, and long-term studies do not provide evidence that they are significantly more hygienic.10,11
Good for use in posterior regions where bonding lingually is difficult
Poor aesthetics
Multistrand stainless steel wire
Zachrisson introduced the multistrand bonded lingual retainer12 and this type of bonded retainer has become the gold standard, despite variations in wire types, diameters and bonding procedures.8
Multistrand stainless steel wire can be used when bonding to all teeth in the labial segments or just canine to canine.8 In the former type, a smaller diameter multistrand wire, usually ranging from 0.0175” to 0.0215” is bonded to each tooth in the labial segment. In the latter, a relatively rigid large diameter multistrand wire, usually 0.032”, is bonded to the canines only. Multistrand wire has the ability to be adapted to the lingual surfaces of the incisors and the flexibility of the wire allows for physiological movement of the teeth, even when several adjacent teeth are bonded.13 Their irregular surface also offers increased mechanical retention for the composite without the need for placement of retentive loops.12
Multistrand wires may be round or rectangular in cross-section and are usually formed from 3–6 fine strands of wire6,8,14,15 that are either braided or arranged co-axially. An adhesive may be used to prevent the unravelling of cut ends16 and some wires are prepared with a coating to provide a smoother surface.
Multistrand wires which are thinner and have fewer strands may have the tendency to distort, however, thicker strands may be more stable, albeit with reduced flexibility. A number of designs of multistrand wire have been described,6,8,14,15 however, Zachrisson has published data regarding the use of gold-coated 0.0215” five-stranded spiral wire, quoting success rates up to 96.5% over a mean observation period of 4.2 years.6
Plain stainless steel wire
This wire is bonded to the canines only. It has been suggested that the use of plain stainless steel wire reduces the possibility of distortion compared to multistrand wire. The recommended dimensions of this wire are 0.030” or 0.032” stainless steel,10,17 with some authors recommending the use of gold-coated stainless steel, to enhance aesthetics and biocompatibility6 (Gold n Braces Inc). The wire may need to be sandblasted at its terminal ends to improve retention of the bonding resin.
Glass-fibre reinforced retainers
Some clinicians argue that one of the disadvantages of using stainless steel wire as a bonded retainer is that it is visible and unattractive.18 Glass-fibre reinforced bonded retainers have been developed to address this issue. They have the advantages of being tooth-coloured, can be easily repaired and can be used in patients with metal allergies.18,19 However, they also exhibit a number of disadvantages, including reduced flexibility and complex, technique-sensitive placement. Glass-fibre reinforced retainers have demonstrated a significantly higher failure rate (51% over 2 years) compared to stainless steel wire retainers (12% over 2 years), in the same study, and therefore their use has been discouraged in daily practice.20,21
Nickel titanium retainers
Some authors have described the successful use of 0.018” nickel-titanium wire bonded lingually to each tooth from canine to canine. This wire could be used to correct relapse of mandibular anterior crowding and also be left in situ for permanent retention. However, there is no long-term data available on the performance of this type of retainer.22
Ortho-Flextech®
Ortho-Flextech® (Reliance Orthodontic Products, Itasca, Ill) is a type of bonded retainer which may be fitted at the chairside. Ortho Flextech® is a chain made of white gold with small amounts of copper, zinc, silver and a trace of nickel that can be bonded directly on to the lingual of tooth surfaces. Users report that a significant advantage of this method is the ease of adaptability of the links in the chain (Figure 1).23

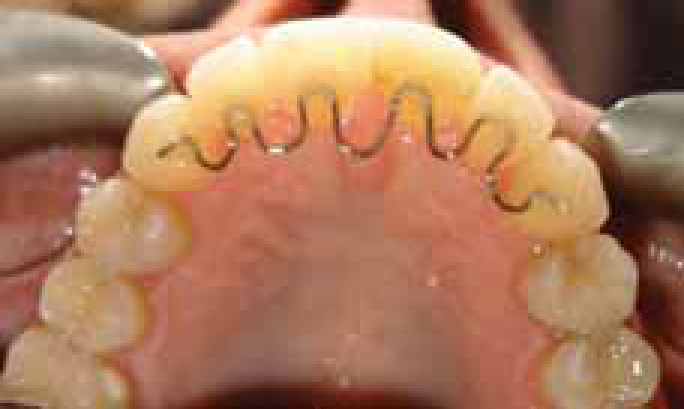

V-loop design
One of the disadvantages of bonded retainers cited is the difficulty in facilitating oral hygiene.10 To address this issue, different retainer designs have been suggested. Lew published a design for a flossable bonded retainer, which involved adapting a length of 0.0195” multistrand wire to the lingual surfaces of the teeth with V-portions across the interdental papilla.24 This design has the advantage of facilitating oral hygiene and, owing to the V-loops, allows physiological movement of the bonded teeth. However, this retainer would need to be fabricated on a model and is more technically demanding than the conventional bonded retainer. In addition, there may be concerns that the wire actually crosses the gingival margin. There is also the possible concern that the increased wire length introduces greater flexibility, if not compensated for by increased wire thickness, that may allow tooth movement. The V-loop retainer, however, has been reported to be well tolerated by patients and has similar success rates to conventional bonded retainers (Figure 2).25
LingLock retainer

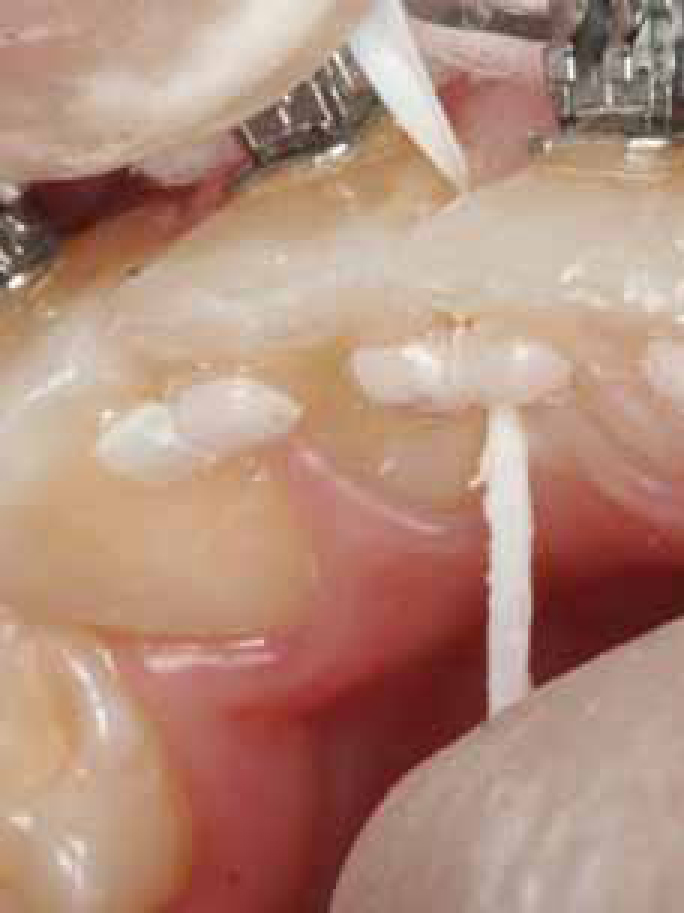

Another design of bonded retainer, which allows the patient to floss, is the LingLock retainer.26 This retainer consists of pairs of retention elements each with female and male interlocking components. Retention is gained by the close contact of these female and male parts, but also allows access to floss interdentally. The designers of this retainer have suggested that the advantages are improved aesthetics, reduced laboratory and chairside time, reduced risk of breakage, easy repair and facilitation of oral hygiene procedures (Figure 3).26

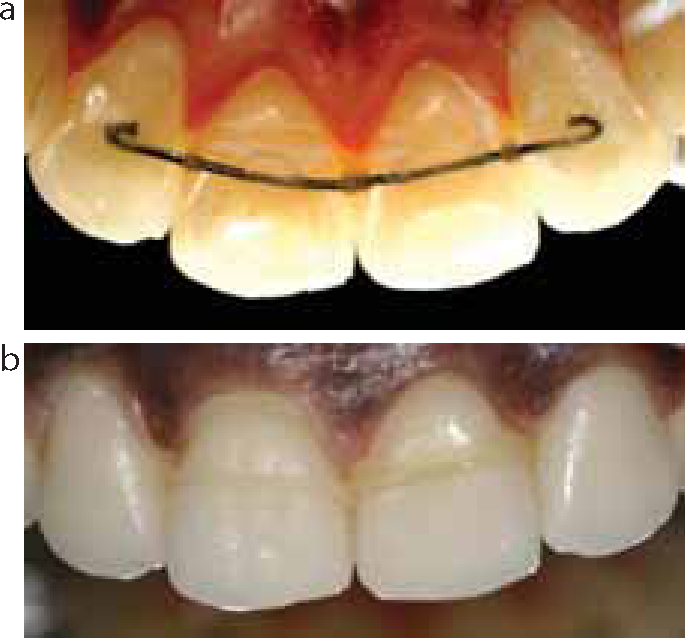

Labial-bonded retainers
Labial-bonded retainers may be indicated in specific situations, eg prevention of space re-opening in a closed extraction site in adults. These retainers tend to be used on posterior teeth, owing to the difficulty of bonding lingually in this region. Labial-bonded retainers have a better survival rate if they are short (eg two teeth) and gold-plated wire is more acceptable to patients than stainless steel. A 4% failure rate over 2 years has been quoted.6,27
Bonding material
Composites are the preferred material for bonding orthodontic fixed retainers.9 A wide range of composite materials have been used for bonding orthodontic retainers, ranging from macro-filled, hybrid and micro-filled.9 More recently, nano-filled composites have been developed which contain filler particles 5–100 nm in diameter, however, no work has been carried out in relation to bonded retainers.28
Failure of bonding can occur in two ways:
At the enamel-composite interface;
At the wire-composite interface.
Evidence has suggested that composites with higher filler content have higher shear strength than composites with low filler content, when bonded to enamel.29 The most frequent site of failure is the wire-composite interface and this is usually associated with previous loss of composite because of abrasion.9 Therefore, a composite with higher filler content has been shown to be more desirable. The use of multistrand wire and/or sandblasting the terminal ends of the retainer should assist the bond between the wire and composite interface. In vitro studies have suggested that the combination of a six-stranded wire (increasing the surface area for the composite to interlock) and macro-filled composite may provide optimum performance in fixed bonded retainers.9 Other studies have suggested that diluting macro-filled composites with unfilled resin would improve handling properties, however, may deteriorate abrasion resistance.30
A light-cured, colour-reactivating composite has been proposed which facilitates visual monitoring for removal of excess adhesive, thus avoiding undue thickness, which can cause plaque retention and gingival inflammation.19
Glass ionomer cements may be used for bonded retainers. They have the advantages of fluoride release which would decrease the risk of decalcification and also have the ability to bond to wet enamel surfaces. Even though they have a decreased bond strength and abrasion resistance compared to composites, they may have sufficient bond strength for use in bonded retainers, as demonstrated in vitro.31,32
Technique for placement
The placement of bonded retainers is time consuming and technique sensitive. To avoid unwanted tooth movement or failure:
Bonded retainers need to be placed passively;
Sufficient composite should be used to bond the retainer (1 mm thickness);
During placement there should be no moisture contamination (use of a rubber dam may be ideal);
The enamel surface should be cleaned and possibly sandblasted;
During placement there should be no movement of the wire.9,10
There are two main techniques for placement of lingual bonded retainers.
Indirect technique
The indirect technique involves fabrication of the bonded retainer on a cast of the patient's dentition. There have been a number of methods developed to fabricate orthodontic bonded retainers indirectly, however, they all essentially follow similar processes (Table 3).
Production of a working model
Adaptation of the retainer wire around the relevant teeth
The wire is then temporarily bonded to the cast (for example with sticky wax)

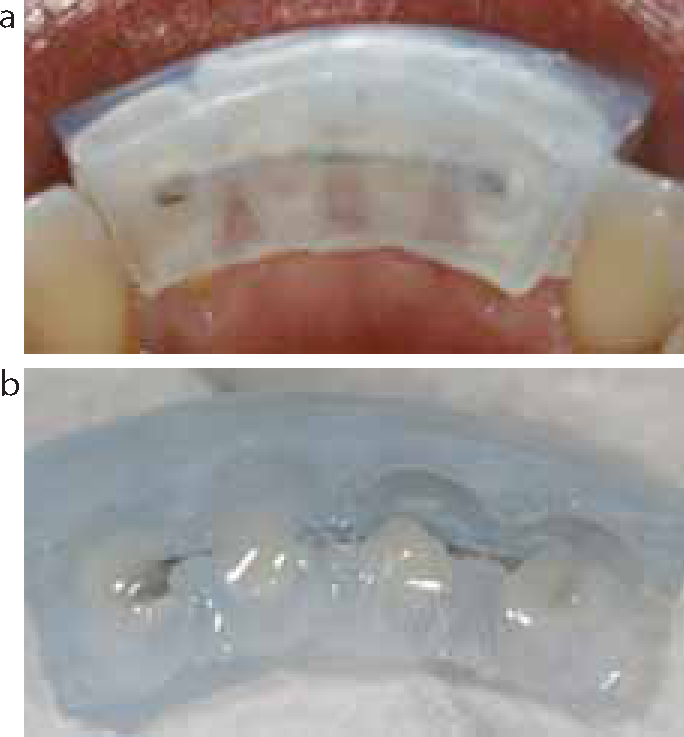

A transfer mechanism is then attached to the wire to assist location of the retainer in the mouth. This could take the form of a Duralay/acrylic matrix, vacuum-formed thermoplastic sheets, silicone-based impression materials, bending a 0.021” x 0.028” stainless steel wire to rest on the incisal edges
The retainer may or may not be sandblasted to increase bond strength
The retainer is then transferred to the mouth for placement33,34,35,36,37,38,39
The indirect method of bonding retainers has the advantages that it allows for accurate positioning, passive placement and minimal disturbance during bonding. The use of a transfer mechanism allows the operator and assistant to have both hands free for bonding.40 In addition, the wire can be easily designed to avoid occlusal interferences (Figure 4).
Direct technique
The direct technique involves placement of the bonded retainer in the mouth without the need for an intermediate laboratory step. The retainer wire must be kept in the proper position, be passive and must not move during bonding.41 A number of techniques have been developed to assist wire placement in direct bonding. These include using fingers, dental floss, orthodontic elastics or ligature wires.42,43,44,45,46,47,48,49 However, these methods may be unreliable.39 Any shift in wire position can lead to bond failure and affect the stability of the treatment results. The use of elastics may mean that the wire is not passive when being placed (Figure 5 and 6).
The use of magnets has also been advocated for the placement of lingual-bonded retainers and has been shown to be adequate at supporting and positioning a multistrand canine to canine retainer during bonding.50,51
A bonded retainer may fail at the wire-composite interface as previously discussed. The use of 1 mm thickness high filler composite with a six strand multistrand wire may decrease the risk of failure of this type.9 To ensure good enamel adhesion, a good bonding technique must be employed, including sandblasting of enamel, and there must not be any wire movement during bonding.10 The thicker the retainer wire, the higher the detachment rate due to increased rigidity.11,52 However, thinner wires may become more easily distorted and suffer stress fractures.6
Bonded retainers have been shown to have a variable survival rate, ranging from over 90%, over a 10-year period,7 to 30%, over a 3-year period (Table 4).53 It has been suggested that survival rates are heavily dependant on the operator skill and extent of the retainer. Where over 90% survival over a 10-year period has been reported, there was a single operator placing bonded retainers in a prescribed manner ranging from 4–6 teeth. Where a survival rate of 30% over 3 years was reported, this study included multiple operators with a wide range of prescriptions, ranging from 2–8 teeth. Higher failure rates were recorded when the upper canines or the lower first premolars were included in the retainer. Table 4 demonstrates the various survival rates quoted in the literature for different designs of retainer. Bonded retainers in the upper arch tend to have higher failure rates, especially if the upper canines are included.6,53 This may be due to the fact that bonded retainers in the upper arch may be subjected to greater occlusal forces and there may be a kink in the wire to allow for the morphology of the canine.
Maxilla = 25-61.2%Mandible = 22.1-23.2% (Depending on adhesive)
Respond wire is a stainless steel co-axial wire from Ormco Int.
The majority of failures tend to occur in the first year. If a bonded retainer survives the first year then the probability of failure dramatically decreases. Early failure may be due to technique deficiencies, ie insufficient enamel/composite bond strength or poor isolation. Late failure is associated with wire fatigue, abrasion of the composite over the wire or excessive bite force.11,53
Effectiveness of bonded retainers
When bonded retainers are attached to all teeth in the labial segment they appear to be effective at maintaining incisor alignment. However, when a canine to canine only retainer is used this may not be the case.10,11,54 There have been case reports published demonstrating that bonded retainers may fail, occasionally, either to prevent relapse of torque correction, or they may be the cause of a developing torque discrepancy within the teeth retained.55 This may be prevented by utilizing a rectangular wire as a bonded retainer or using two wires which are bonded occluso-gingivally to each other and also ensuring that the wire is passive before bonding.55,56
Oral disease
Although bonded retainers are generally effective at maintaining alignment, they have the disadvantage of compromising oral hygiene. Patients with bonded retainers have been shown to have increased plaque accumulation around the retainer. This may predispose the patient to risks of decalcification, dental caries and periodontal disease.11 Even though there is an accumulation of plaque and calculus around the retainer, there may not be any long-term damage to hard or soft tissues.10,17 There also appears to be no difference in the periodontal implications for patients who wear removable retainers or have bonded retainers, even though patients with bonded retainers tend to have slightly more plaque and calculus build-up.57 The design of the bonded retainer does not have a significant effect on plaque or calculus accumulation, however, the length of time that the appliance is in the mouth and the oral hygiene of the patient do have an effect.17,57 The saliva pooling in the lingual region of the lower incisors may decrease the risk of decalcification.
Orthodontic-restorative interface
The use of bonded retainers in multidisciplinary cases, which require the use of crown and bridgework, is problematic. There is very little evidence on the use of bonded retainers in conjunction with crown and bridgework. The use of silane coupling agents has been recommended to bond brackets on to feldspathic porcelain, but no evidence exists on bonding of retainers.58Panavia adhesive cements (Kuraray Dental, New York, USA) have been used in restorative dentistry to cement crown and bridgework constructed from nickel-chromium. Hypothetically, a similar cement could be used as a bonded retainer specifically if:
The nickel-chromium surface was roughened;
Multistrand wire was used, which would allow mechanical interlocking of the cement to the wire.
However, this has never been tested.
Crown and bridgework has been designed with a slot or tunnel for placement of a fixed bonded retainer. This is a very technique sensitive procedure and may require extra tooth removal or may compromise the structural integrity of the prosthesis.
Another option would be either to use splinted crowns or double abutted bridgework. These options may not be conducive to the maintenance of oral health. In addition, double-abutted, resin-retained bridges are twice as likely to fail compared to cantilever designs.59
Conclusion
Bonded retainers are an effective way of maintaining orthodontic tooth positions. There are various situations where their use is indicated, though placement may be time consuming and technically challenging. Bonded retainers should be bonded passively, with a good bonding technique. Following this review, suggestions to assist bonded retention include:
Teeth should be scaled to remove calculus, plaque and debris prior to placing a bonded retainer;
Utilization of the indirect method of fabrication with the use of a transfer jig would assist passive placement, together with a good bonding technique;
The use of a high filler yet flowable composite of 1.0 mm thickness should be used for bonding;
The use of multistrand wire may increase retention at the wire-composite interface;
Multistrand wire remains the gold standard for maintaining incisor alignment;
Bonded retainers should be placed so that they do not interfere with the occlusion. Taking an impression of the opposing arch may assist the technician in avoiding the occlusion;

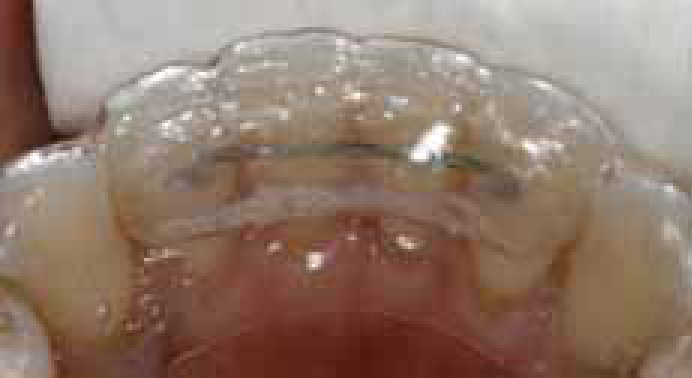

Removable retainers should be used in conjunction with bonded retainers to help maintain alignment in the event of failure of the bonded retainers (Figure 7).
There are many different types of bonded retainers, techniques of fabrication and methods of fitting bonded retainers, with many different materials used to bond the retainers. If a bonded retainer is indicated, the design of the retainer should be carefully considered and the execution on fitting the retainer should be excellent to ensure long-term survival and retention.
